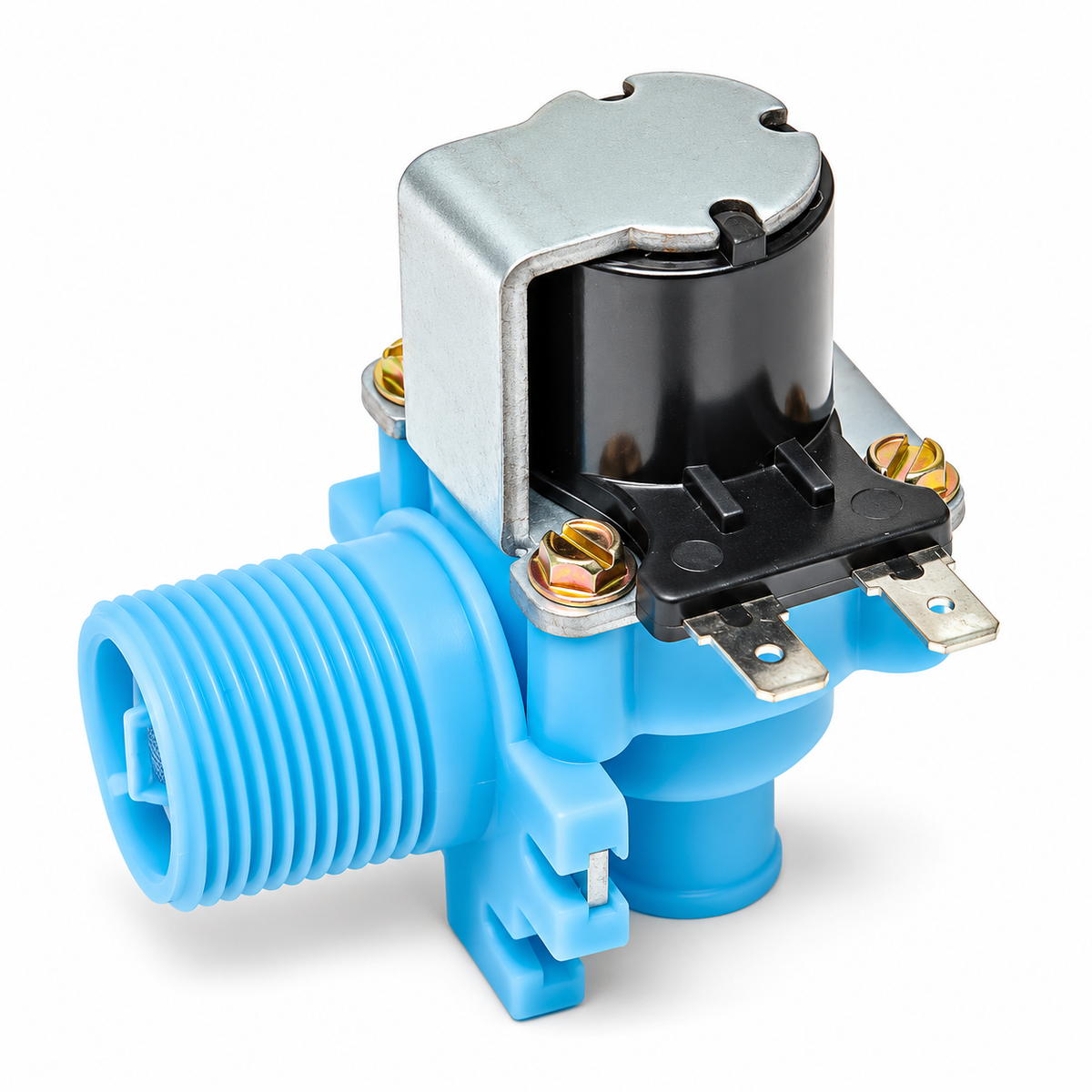

Ice Machine Water Inlet Solenoid Valve Compatible with Hoshizaki 3U0111-01, IH3U0111-01 Replacement, 120V 60Hz, 3.96 GPM, Garden Hose Inlet Connection

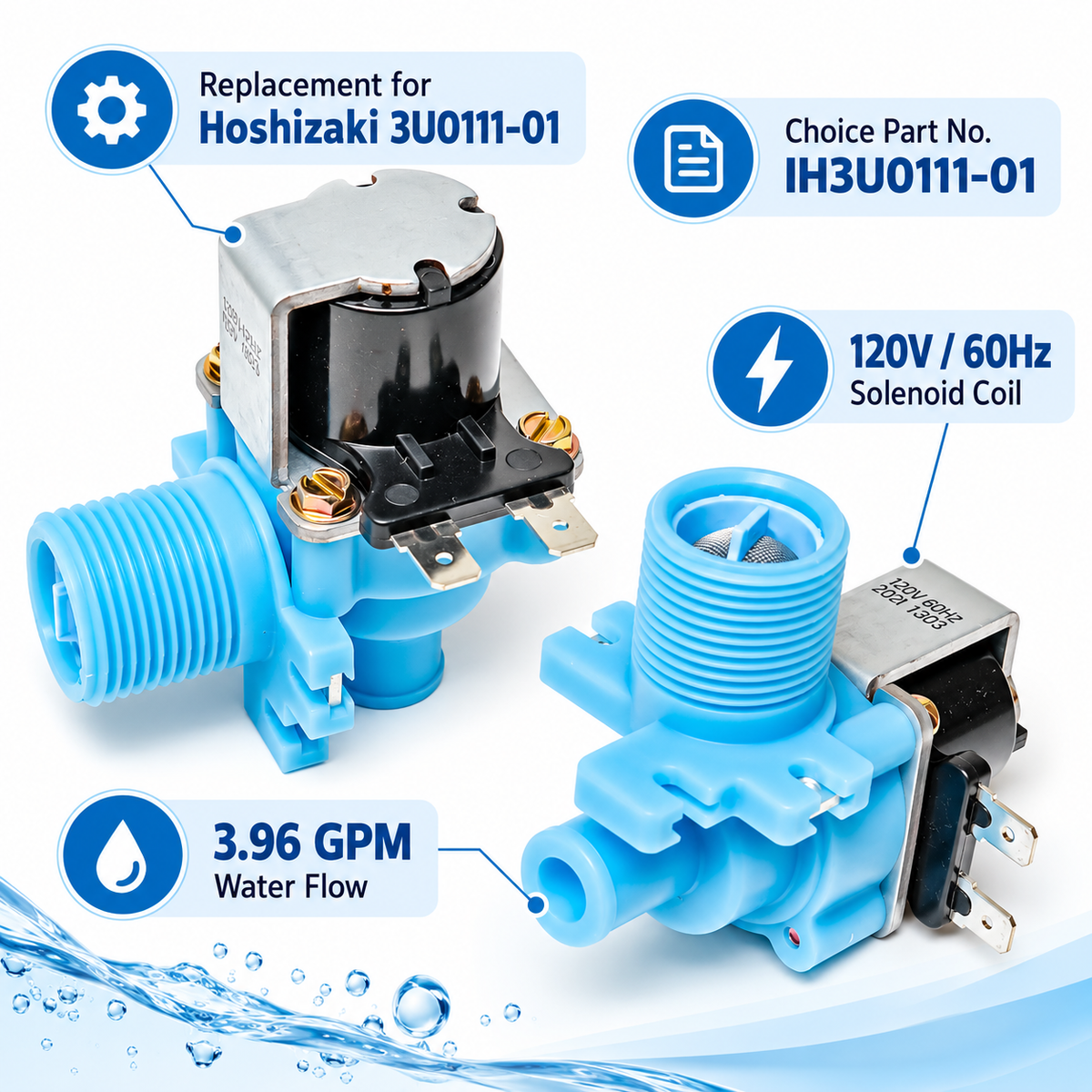

REPLACEMENT FOR 3U0111-01 – Choice manufactured replacement water inlet solenoid valve designed for use in compatible Hoshizaki commercial ice machines. Choice part number IH3U0111-01.

• 120V SOLENOID COIL – Equipped with a 120V, 60Hz solenoid coil for proper operation in compatible commercial ice-making equipment.

• 3.96 GPM WATER FLOW – Designed with a rated flow of approximately 3.96 GPM to provide reliable water supply to compatible ice machine systems.

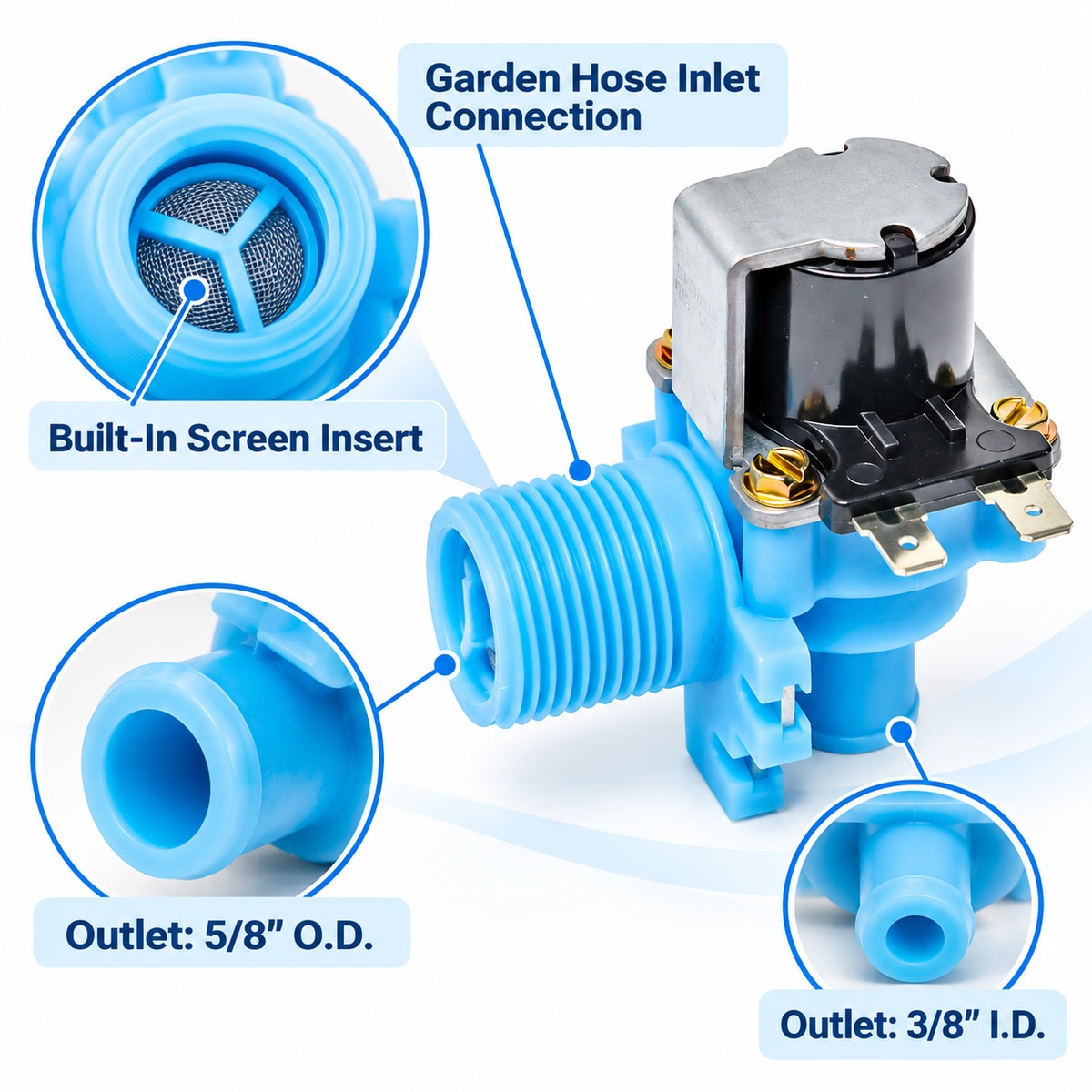

• GARDEN HOSE INLET CONNECTION – Features a threaded garden-hose-style water inlet connection with screen insert to help prevent debris from entering the valve.

• OUTLET DIMENSIONS – Water outlet measures approximately 5/8" O.D. and 3/8" I.D. Verify dimensions, voltage, connections, and original part number before ordering.

PRODUCT DESCRIPTION

Restore proper water flow to your commercial ice machine with this replacement water inlet solenoid valve.

Choice manufactured part number IH3U0111-01 is designed as a replacement for Hoshizaki part number 3U0111-01 in compatible ice machines.

The valve features a garden hose inlet connection with screen insert, a 120V 60Hz solenoid coil, and an approximately 3.96 GPM rated water flow. The outlet measures approximately 5/8" outside diameter and 3/8" inside diameter.

Specifications:

Replacement Part Number: 3U0111-01
Choice Part Number: IH3U0111-01
Valve Type: Water Inlet Solenoid Valve
Voltage: 120V
Frequency: 60Hz
Flow Rate: 3.96 GPM
Inlet: Garden Hose Connection with Screen Insert
Outlet: 5/8" O.D. / 3/8" I.D.

COMPATIBLE WITH SELECT HOSHIZAKI ICE MACHINES INCLUDING:

KM-1100 Series
KM-1200 Series
KM-1300 Series
KM-1301 Series
KM-1340 Series
KM-1600 Series
KM-1601 Series

May also fit additional compatible Hoshizaki KM-series machines that use water valve part number 3U0111-01.
